My Spindle will not Accept / Release Tool - ISO20 Tooling

My Spindle will not Accept / Release Tool - ISO20 Tooling

If you have trouble installing or removing a tool check the following items as they may be the cause of the issue.

Pressure Into the Machine is too low.

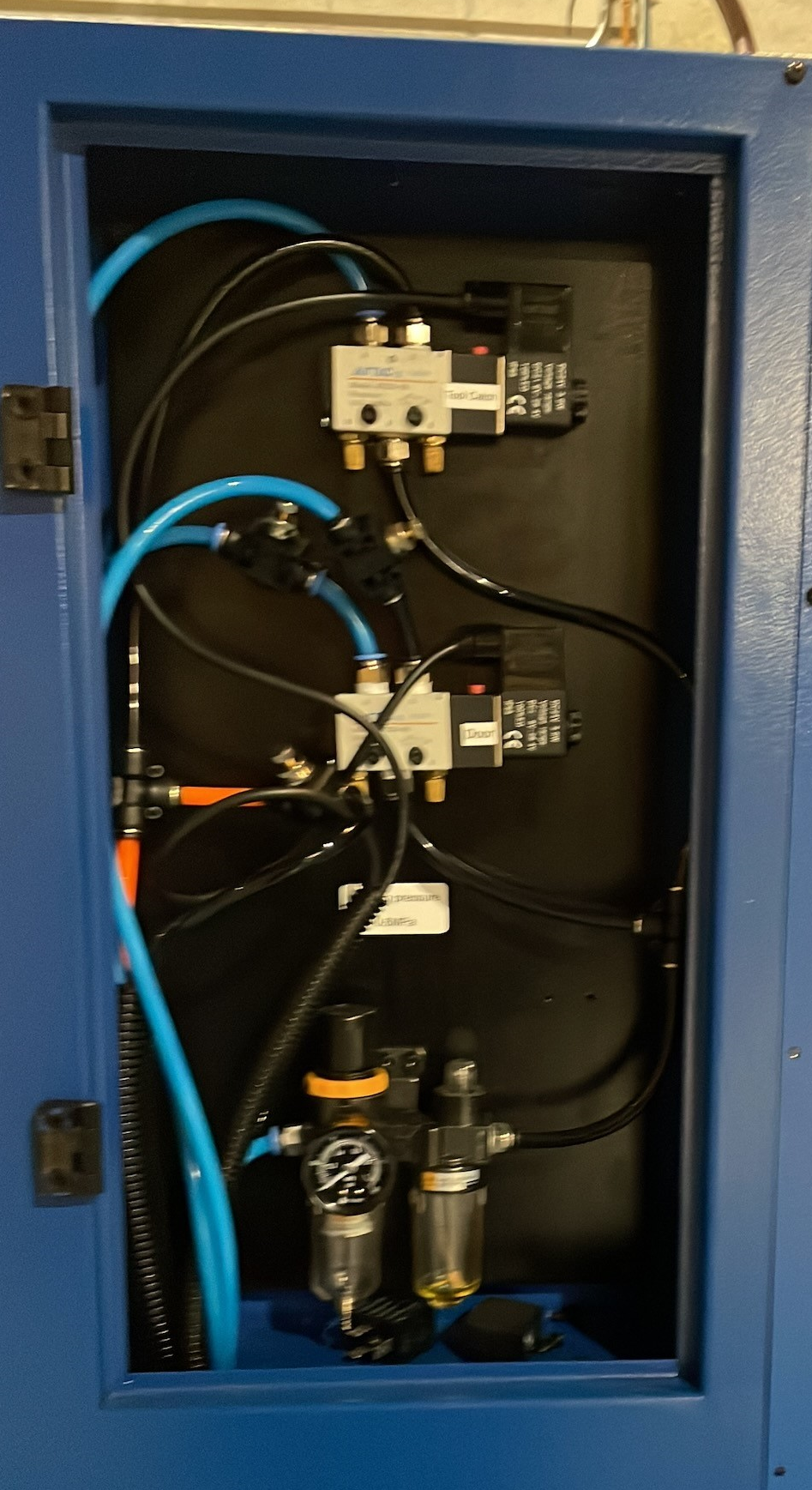

1. Open the left rear door on the machine. It will probably be locked, the keys should be in the top of the included toolbox.

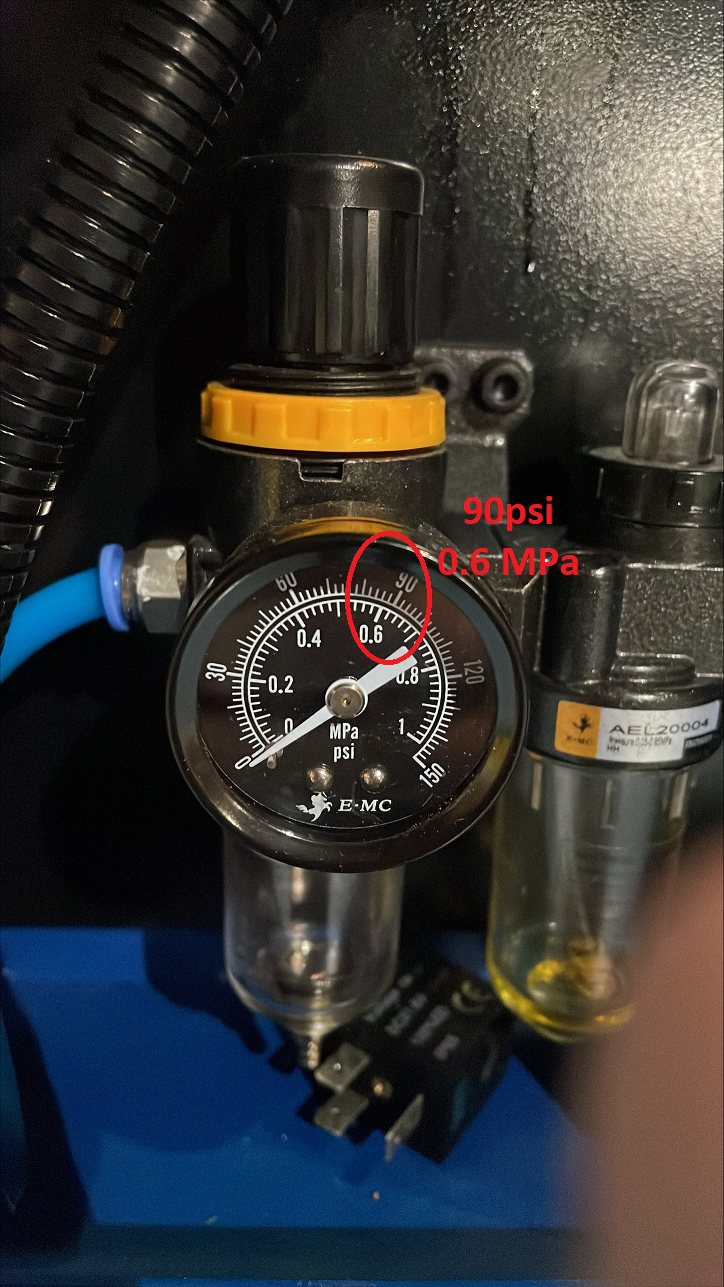

2. Check the current air pressure reading on the dial attached to the pressure regulator on the back of the machine. The needle should point at 90psi / 0.6MPa. If it does not check your air compressor is turned on and the pressure gauge on it or at the wall also reads at least 90psi/0.6MPa
