Setting up the Handwheel for the Bench / Pro Series of CNC Machines

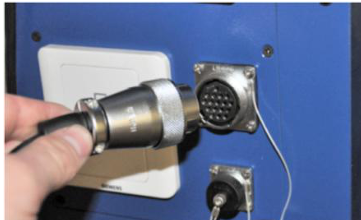

Connecting the Handwheel

1. Turn off the machine.

2. Remove the plastic cap.

3. Align the key between the connections.


4. Tighten the connection, by turning the collar.


Configure CNCBase

1. Goto Start -> All Apps -> CNCBase Configuration

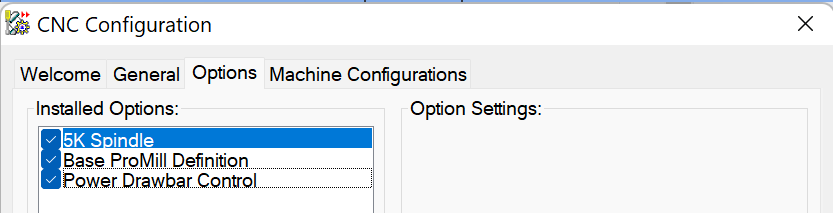

2. Click on the options tab at the top of the screen.

3. Click Reinstall at the bottom of the window.

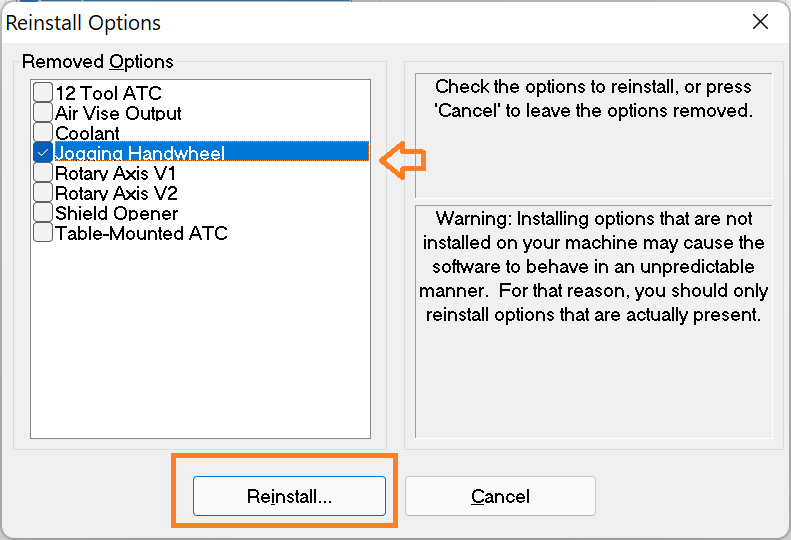

4. Check the box next to Jogging Handwheel and then click Reinstall.

5. Confirm that Installed Options shows Jogging Handwheel and then click OK.

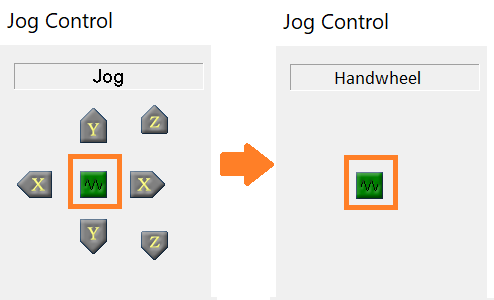

Enable the Jogging Handwheel in CNCBase.
